20-610mm Stainless Steel 304 Coil 201 309s Grade SS Sheet Coil
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Certification | mill certificate |
| Model Number | 309S hot rolled/cold rolled stainless steel coil |
| Minimum Order Quantity | 25T |
| Price | negothiable |
| Packaging Details | Export Package |
| Delivery Time | 15-20 days after deposit |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000T PER MONTH OR MORE |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 309S Hot Rolled/cold Rolled Stainless Steel Coil | Standard | JIS, AiSi, ASTM, GB, DIN, EN |
|---|---|---|---|
| Type | Coil | Thickness | 0.3-6mm |
| Width | 20-610mm | Technique | Hot Rolled |
| Surface Treatment | Polished | Grade | 300 Series |
| Processing Service | Bending, Welding, Cutting | Surface Finish | BA, BA |
| Application | Construction | Steel Grade | 316, 321, 304 |
| Length | 6-12m | ||
| High Light | 20mm stainless steel 304 coil,610mm stainless steel 304 coil,309s ss sheet coil |
||
Product Description

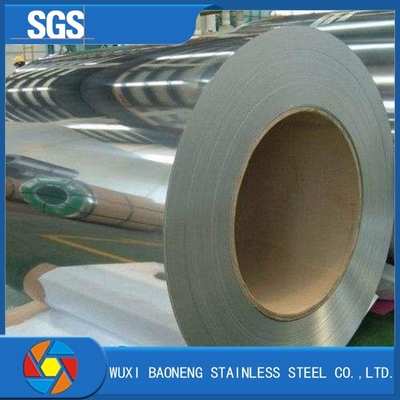

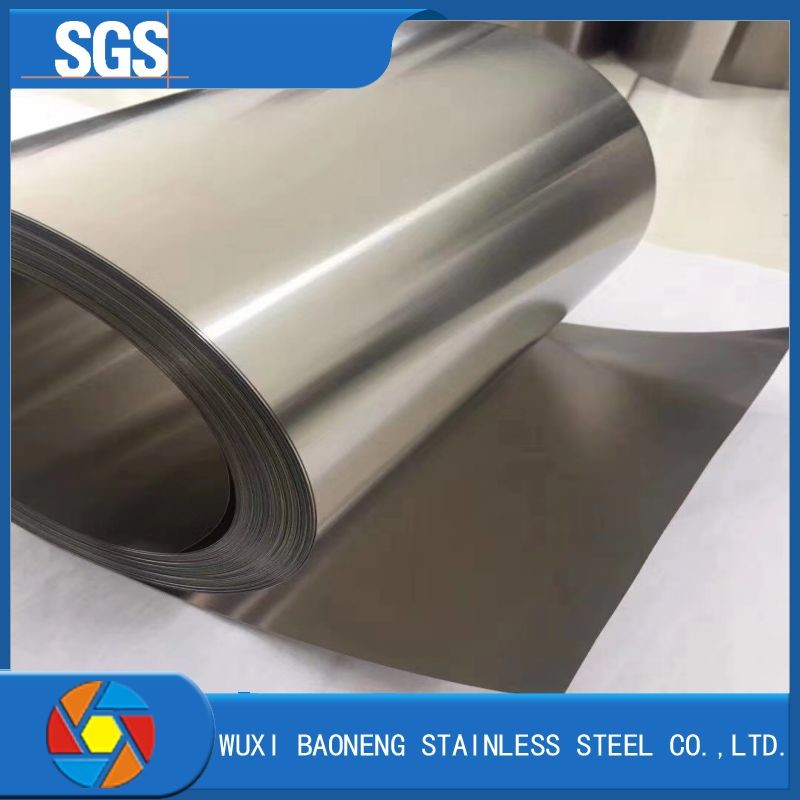

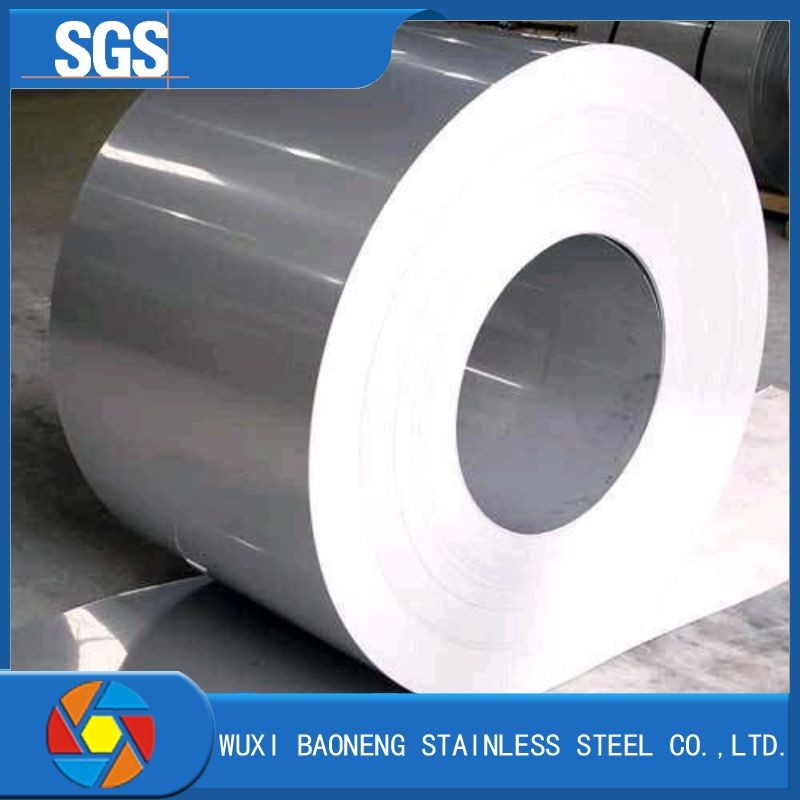

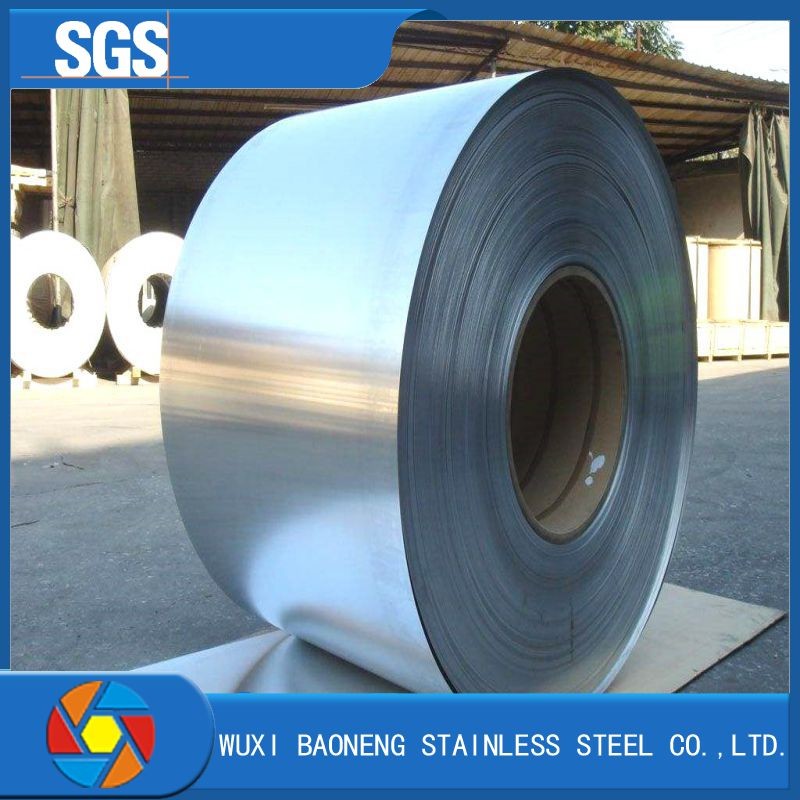

309S hot rolled/cold rolled stainless steel coil
309S stainless steel is a low carbon version of 309. Because of its lower carbon-content, 309S minimizes carbide precipitation, and improves weldability. It can be easily roll formed, stamped and drawn. Other key properties of 309S include good weldability and machinability, outstanding resistance to oxidation. 309S is utilized by many different industries for a number of critical applications including:oven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts and so on.
ElementType 309S (Wt.%)
Carbon: 0.08 max
Manganese: 2.00 max.
Phosphorus: 0.045 max.
Sulfur: 0.030 max.
Silicon: 1.00 max.
Chromium: 22.00-24.00
Nickel: 12.00-15.00
Element (Wt.%)
| Carbon | Manganese | phosphorus | Sulfur | Silicon | Chromium | Nickel |
| 0.08max | 2.00max | 0.045max | 0.030max | 1.00max | 22.00-24.00 | 12.00-15.00 |
Mechanical Property
| Material Item | Tensile Strength (MPa) | Yield Strength (MPa) | Extension | Hardness (HV) | Density |
| 309S | ≥520 | ≥205 | ≥40% | ≤200 | 7.98g/cm³ |
Surface Treatment
| Surface Treatment | Definition | Application |
| NO.1 | A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding process | Chemical Tanks, Pipes, Chemical Industry Equipment etc. |
| 2B | After cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate luster | Medical Equipment, Food Industry, Construction Material, Kitchen Utensils etc. |
| BA | After cold rolling, bright heat treatment is given | Kitchen Utensils, Electric Equipment, Building Construction etc. |
| NO.4 | Products polished with abrasives 150 to 180 as specified in JIS R6001 | Kitchen Utensils, Building Construction, Medical Equipment etc. |
| HL | After polishing, use the appropriate abrasive size to form a continuous polishing streak | Building Construction etc. |
| 8K | A mirror-like reflective surface given by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior and exterior decoration etc. |
COIL
| Commodity | 309S hot rolled/cold rolled stainless steel coil |
| Brand | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Surface | No.1/ 2B/ BA/ No.4/ 8K/ HL |
| Thickness | 0.3mm-16mm |
| Width | 1000mm-2000mm, or as customized |
| Length | as customized |
| Application | oven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts, etc |
| Delivery Time | Normally within 15 days, according to the quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | Standard Export Packaging |
FAQ
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surfacetreatment requirements, cold or hot ,as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai,which is very near to my company , if you have other ports requirement, you could tell us in advance
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can I pay you a visit at your factory?
Customers from all around the world are welcome to visit our factory.
Q8:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
