Aisi 1020 Steel Stainless Steel Coil Strip 2205 1mm Steel Strip For Construction
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Certification | mill certificate |
| Model Number | 2205 stainless steel strip |
| Minimum Order Quantity | 25T |
| Price | negothiable |
| Packaging Details | Export Package |
| Delivery Time | 15-20 days after deposit |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000T PER MONTH OR MORE |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 2205 Stainless Steel Strip | Standard | JIS, AiSi, ASTM, GB, DIN, EN |
|---|---|---|---|
| Type | Strip | Thickness | 0.02mm-5mm |
| Width | 20-610mm | Length | 6-12m |
| Technique | Hot Rolled | Surface Treatment | Polished |
| Grade | 300 Series | Processing Service | Bending, Welding, Cutting |
| Surface Finish | BA, BA | Application | Construction |
| Steel Grade | 316, 321, 304 | ||
| High Light | AISI stainless steel coil strip,1020 stainless steel coil strip,2205 1mm steel strip |
||
Product Description

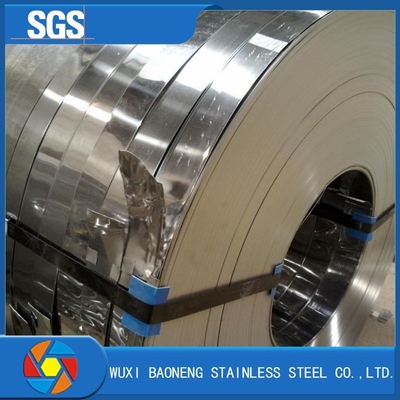

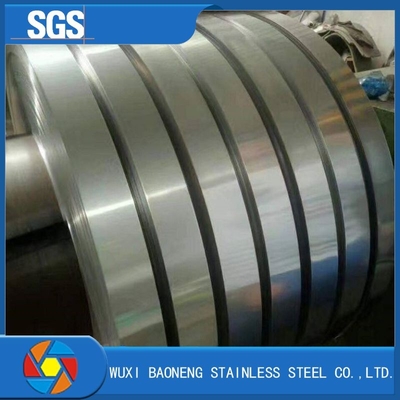

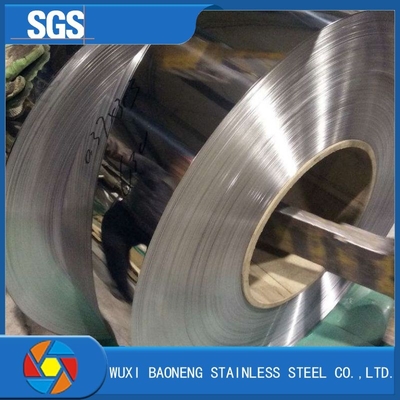

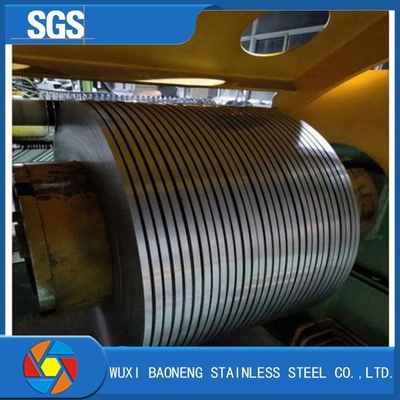

2205 stainless steel strip
Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades. It also demonstrates good fatigue strength, as well as outstanding resistance to stress corrosion cracking, crevice, pitting, erosion, and general corrosion in severe environments.
APPLICATIONS:
Chemical processing, transport and storage – pressure vessels, tanks, piping, and heat exchangers
Oil and gas exploration and processing equipment – piping, tubing, and heat exchangers
Marine and other high chloride environments
Effluent scrubbing systems
Pulp and paper industry – digesters, bleaching equipment, and stock-handling systems
Cargo tanks for ships and trucks
Food processing equipment
Biofuels plants
ElementType 2205 (Wt.%)
Carbon: 0.03 max
Manganese: 2.00 max.
Phosphorus: 0.040 max.
Sulfur: 0.030 max.
Silicon: 1.00 max.
Chromium: 21.00-24.00
Nickel: 4.50-6.50
Nitrogen: 0.08-0.20
Molybdenum: 2.50-3.50
Element (Wt.%)
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Nitrogen | Molybdenum |
| 0.03max | 2.00max | 0.040max | 0.030max | 1.00max | 21.00-24.00 | 4.50-6.50 | 0.08-0.20 | 2.50-3.50 |
Mechanical Property
| Material Item | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation | Hardness Rockwell C (HR C) | Hardness Brinell (HB) |
| 2205 | ≥621 | ≥448 | ≥25% | ≤31 | ≤293 |
Surface Treatment
| Surface Treatment | Definition | Application |
| NO.1 | A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding process | Chemical Tanks, Pipes, Chemical Industry Equipment etc. |
| 2B | After cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate luster | Medical Equipment, Food Industry, Construction Material, Kitchen Utensils etc. |
| BA | After cold rolling, bright heat treatment is given | Kitchen Utensils, Electric Equipment, Building Construction etc. |
| NO.4 | Products polished with abrasives 150 to 180 as specified in JIS R6001 | Kitchen Utensils, Building Construction, Medical Equipment etc. |
| HL | After polishing, use the appropriate abrasive size to form a continuous polishing streak | Building Construction etc. |
| 8K | A mirror-like reflective surface given by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior and exterior decoration etc. |
STRIP
| Commodity | 2205 stainless steel strip |
| Brand | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Surface | No.1/ 2B/ BA/ No.4/ 8K/ HL |
| Thickness | 0.02mm-5mm |
| Width | 15mm-600mm |
| Length | as customized |
| Application | pressure vessels, tanks, piping, and heat exchangers, piping, tubing, and heat exchangers, digesters, bleaching equipment, and stock-handling systems, etc |
| Delivery Time | Normally within 15 days, according to the quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | Standard Export Packaging |
FAQ
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surfacetreatment requirements, cold or hot ,as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai,which is very near to my company , if you have other ports requirement, you could tell us in advance
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can I pay you a visit at your factory?
Customers from all around the world are welcome to visit our factory.
Q8:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
