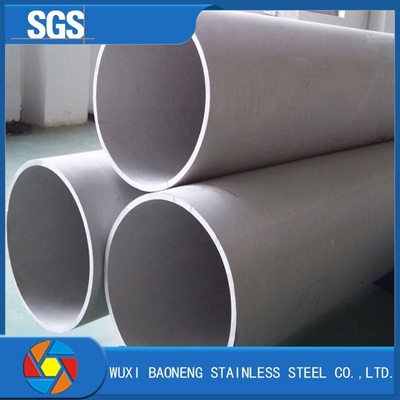

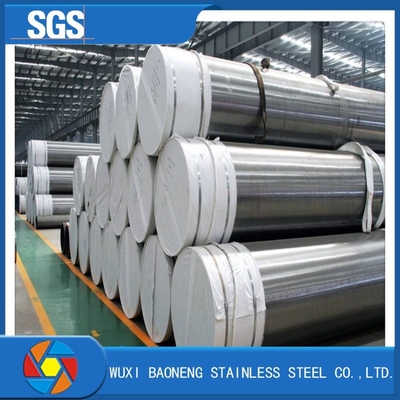

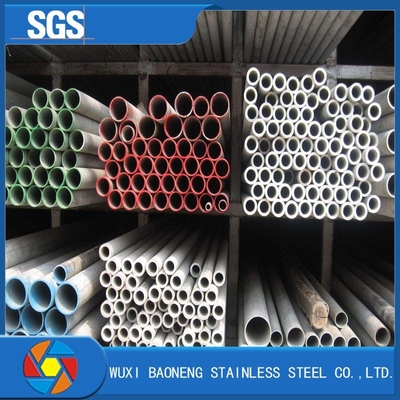

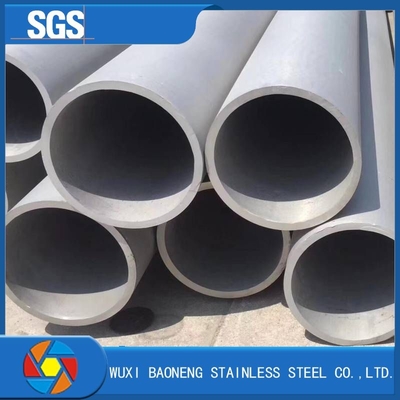

AISI 304 Stainless Steel Seamless Pipe 20mm Diameter Stainless Steel Pipe Mirror Polished
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Certification | mill certificate |
| Model Number | 2507 seamless stainless steel pipe |
| Minimum Order Quantity | 25T |
| Price | negothiable |
| Packaging Details | Export Package |
| Delivery Time | 15-20 days after deposit |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000T PER MONTH OR MORE |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 2507 Seamless Stainless Steel Pipe | Standard | EN, BS, JIS, Etc |
|---|---|---|---|
| Type | Seamless Stainless Steel Pipe | Size | 6mm - 1174mm Or Customized |
| Grade | Q235, Q235B, S275, S275jr, A53, St37, Etc | Oiled Or Non-oiled | Non-oiled |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, | Technique | ERW, SAW |
| OD | 10mm 20mm | Length | 1000-5800mm,6000-12000mm |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding | Surface Finish | 2B |
| Section Shape | Round | ||
| High Light | AISI 304 stainless steel seamless pipe,304 stainless steel seamless pipe 20mm,mirror 304 ss seamless tubing |
||
Product Description
2507 seamless stainless steel pipe
Duplex 2507 (UNS S32750) is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity, and a low coefficient of thermal expansion. The high chromium, molybdenum, and nickel levels provide excellent resistance to pitting, crevice, and general corrosion.
Applications
Oil and gas industry equipment
Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems
Chemical process industries, heat exchangers, vessels, and piping
Desalination plants, high pressure RO-plant and seawater piping
Mechanical and structural components, high strength, corrosion-resistant parts
Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping
ElementType 2507 (Wt.%)
Carbon: 0.03 max
Manganese: 1.20 max.
Phosphorus: 0.035 max.
Sulfur: 0.020 max.
Silicon: 0.80 max.
Chromium: 24.00-26.00
Nickel: 6.00-8.00
Nitrogen: 0.24-0.32
Molybdenum: 3.00-5.00
Copper: 0.50 max
Element (Wt.%)
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Nitrogen | Molybdenum | Copper |
| 0.03max | 1.20max | 0.035max | 0.020max | 0.80max | 24.00-26.00 | 6.00-8.00 | 0.24-0.32 | 3.00-5.00 | 0.50max |
Surface Treatment
| Surface Treatment | Definition | Application |
| NO.1 | A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding process | Chemical Tanks, Pipes, Chemical Industry Equipment etc. |
| 2B | After cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate luster | Medical Equipment, Food Industry, Construction Material, Kitchen Utensils etc. |
| BA | After cold rolling, bright heat treatment is given | Kitchen Utensils, Electric Equipment, Building Construction etc. |
| NO.4 | Products polished with abrasives 150 to 180 as specified in JIS R6001 | Kitchen Utensils, Building Construction, Medical Equipment etc. |
| HL | After polishing, use the appropriate abrasive size to form a continuous polishing streak | Building Construction etc. |
| 8K | A mirror-like reflective surface given by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior and exterior decoration etc. |
PIPE
| Commodity | 2507 seamless stainless steel pipe |
| Grade | 2507 |
| OD | 6mm-426mm, or as customized |
| WT | 1mm-30mm, or as customized |
| Length | 5m-7m, or as customized |
| Surface | Pickling, matt, polished, mirror |
| Application | Desalination plants, high pressure RO-plant and seawater piping; Mechanical and structural components, high strength, corrosion-resistant parts; Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping |
| Delivery Time | 7-30 days, according to quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | In bundles, water proof packing, in wooden case, or as per customers’ requirement |
FAQ
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surfacetreatment requirements, cold or hot ,as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai,which is very near to my company , if you have other ports requirement, you could tell us in advance
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can I pay you a visit at your factory?
Customers from all around the world are welcome to visit our factory.
Q8:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
