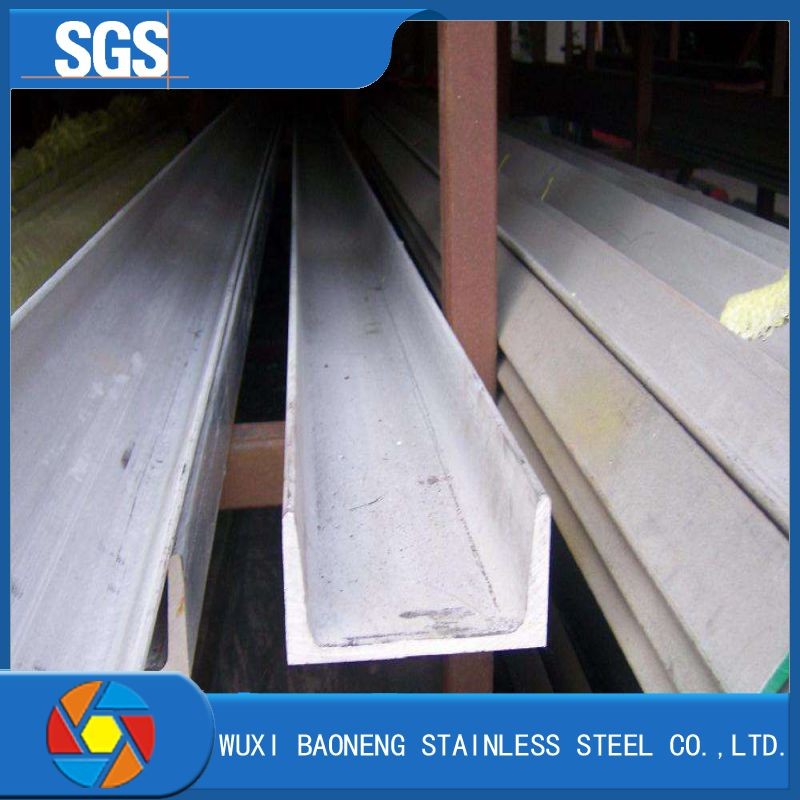

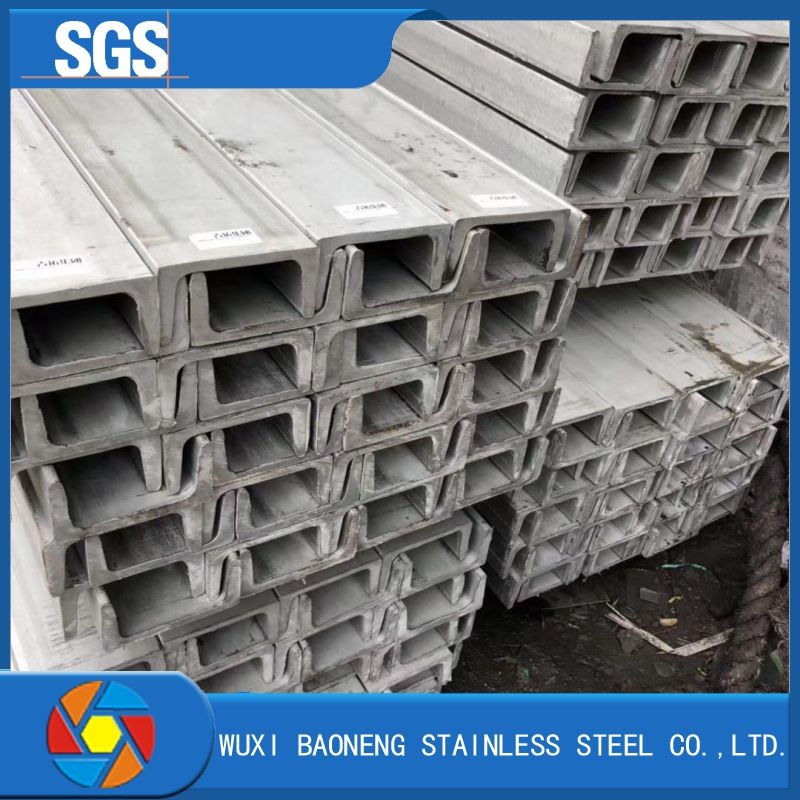

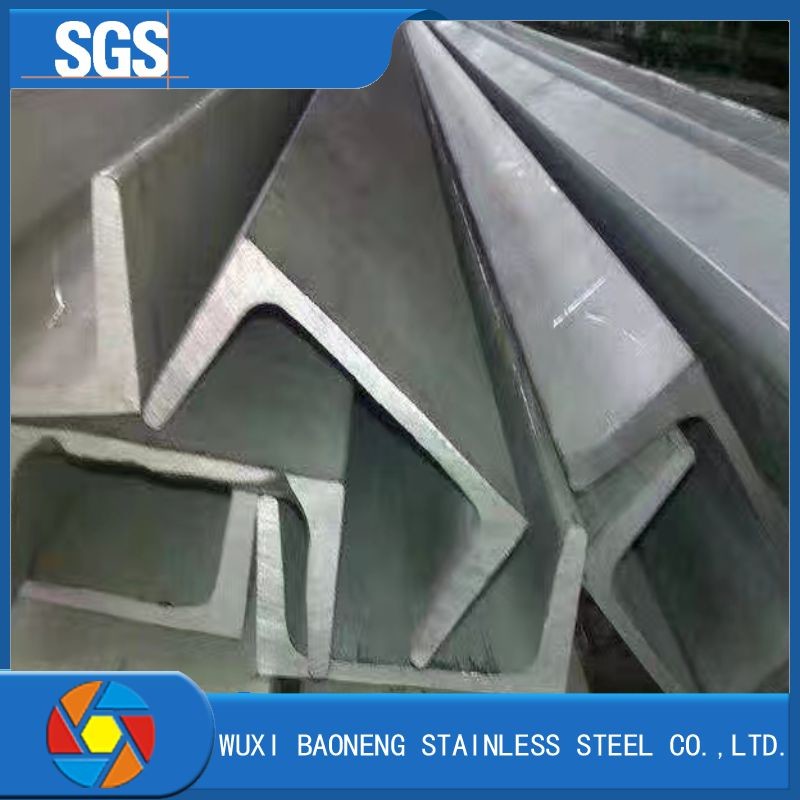

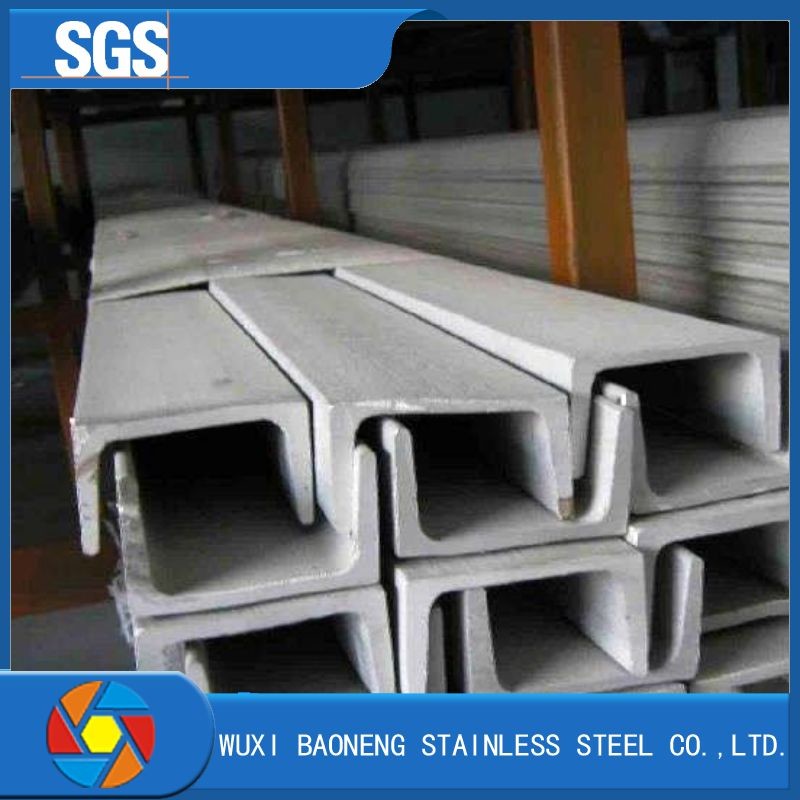

202 Stainless Steel Channel Bar 50x100mm U Section For Structural Parts

Place of Origin CHINA
Brand Name TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
Certification mill certificate
Model Number 202 stainless steel channel bar
Minimum Order Quantity 25T
Price negothiable
Packaging Details Export Package
Delivery Time 15-20 days after deposit
Payment Terms L/C, T/T
Supply Ability 2000T PER MONTH OR MORE

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 202 Stainless Steel Channel Bar Standard JIS, AiSi, ASTM, GB, DIN, EN
Type Channel Bar Size 5#-40#
Length 6-12m Width 20-610mm
Technique Hot Rolled Surface Treatment Polished
Grade 300 Series Processing Service Bending, Welding, Cutting
Surface Finish BA, BA Application Construction
Steel Grade 316, 321, 304
High Light

202 Stainless Steel Channel Bar

,

50mm Stainless Steel Channel Bar

,

100mm stainless steel u section

Leave a Message
Product Description

202 stainless steel channel bar


Grade 202 stainless steel is a type of Cr-Ni-Mn stainless with similar properties to A240/SUS 302 stainless steel. The toughness of grade 202 at low temperatures is excellent.It is one of the most widely used precipitation hardening grades, and possesses good corrosion resistance, toughness, high harness, and strength.

ElementType 202 (Wt.%)
Carbon: 0.15 max
Manganese: 7.50-10.00 max.
Phosphorus: 0.06 max.
Sulfur: 0.03 max.
Silicon 1.00 max.
Chromium: 17.00-19.00
Nickel: 4.00-6.00
Nitrogen: 0.25 max.

Element (Wt.%)

CarbonManganesePhosphorusSulfurSiliconChromiumNickelNitrogen
0.15max7.50-10.000.06max0.030max1.00max17.00-19.004.00-6.000.25max


Mechanical Property

Material ItemTensile Strength (MPa)Yield Strength (MPa)ExtensionHardness (HV)Density
202≥520≥275≥40%≤2187.98g/cm³




Surface Treatment

Surface TreatmentDefinitionApplication
NO.1A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding processChemical Tanks, Pipes, Chemical Industry Equipment etc.
2BAfter cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate lusterMedical Equipment, Food Industry, Construction Material, Kitchen Utensils etc.
BAAfter cold rolling, bright heat treatment is givenKitchen Utensils, Electric Equipment, Building Construction etc.
NO.4Products polished with abrasives 150 to 180 as specified in JIS R6001Kitchen Utensils, Building Construction, Medical Equipment etc.
HLAfter polishing, use the appropriate abrasive size to form a continuous polishing streakBuilding Construction etc.
8KA mirror-like reflective surface given by polishing with finer abrasives over 800 meshReflector, Mirror, Interior and exterior decoration etc.



Channel Bar

Commodity202 stainless steel channel bar
Size5#-40#
Length6m, or as customized
SurfaceBright, pickled, black
ApplicationConstruction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields
Delivery Time7-30 days, according to quantity
Price TermsFOB/ CFR/ CIF
PackageExport standard package, or as per customers’ requirement



202 Stainless Steel Channel Bar 50x100mm U Section For Structural Parts 0


FAQ

Q1:What product information must I provide before making a purchase?

Please provide the grade, width, thickness, and surfacetreatment requirements, cold or hot ,as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai,which is very near to my company , if you have other ports requirement, you could tell us in advance
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can I pay you a visit at your factory?
Customers from all around the world are welcome to visit our factory.
Q8:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
