Extrusion Decorative SS C U Profile 201 304 316 Brushed Stainless Steel Channel
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Certification | mill certificate |
| Model Number | 321 stainless steel channel bar |
| Minimum Order Quantity | 25T |
| Price | negothiable |
| Packaging Details | Export Package |
| Delivery Time | 15-20 days after deposit |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000T PER MONTH OR MORE |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 321 Stainless Steel Channel Bar | Standard | JIS, AiSi, ASTM, GB, DIN, EN |
|---|---|---|---|
| Type | Channel Bar | SIze | 5#-40# |
| Length | 6-12m | Width | 20-610mm |
| Technique | Hot Rolled | Surface Treatment | Polished |
| Grade | 300 Series | Processing Service | Bending, Welding, Cutting |
| Surface Finish | BA, BA | Application | Construction |
| Steel Grade | 316, 321, 304 | ||
| High Light | decorative 201 stainless steel u profile,316 brushed stainless steel channel,304 brushed stainless steel channel |
||
Product Description

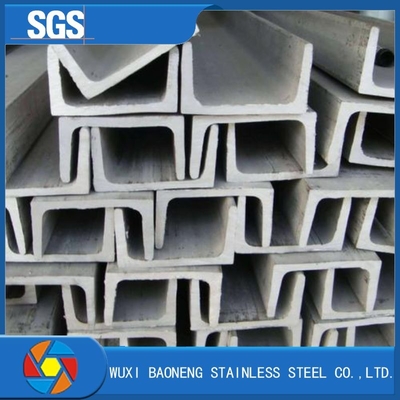

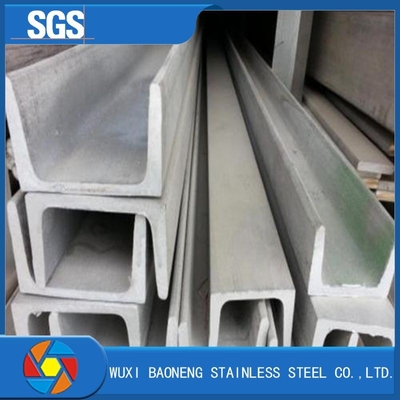

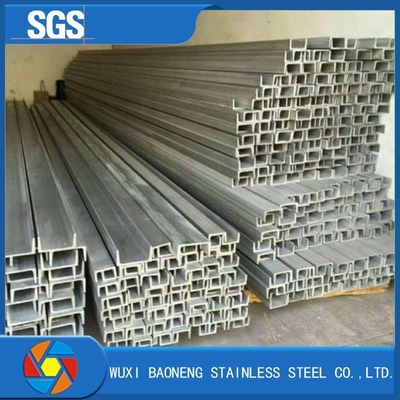

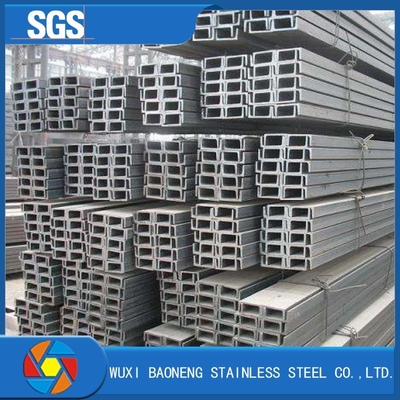

321 stainless steel channel bar
321 SS is a titanium stabilized austenitic chromium-nickel stainless steel which was developed to provide an 18-8 type alloy with improved intergranular-corrosion resistance. This material is stabilized against chromium carbide formation by the addition of titanium. Since titanium has a stronger affinity for carbon than chromium, titanium carbide precipitates within the grains instead of forming at the grain boundaries. 321 stainless steel should be considered for applications requiring intermittent heating between 800ºF (427ºC) and 1650ºF (899ºC), or for welding under conditions which prevent a post-weld anneal. 321 stainless steel is non-magnetic.
Typical applications include:
Aircraft exhaust manifolds, expansion joints, bellows, furnace parts, heating element tubing, heat exchangers, woven or welded screens for high-temperature mineral processing, spiral welded tube for burner pipes and flues
ElementType 321 (Wt.%)
Carbon: 0.08 max
Manganese: 2.00 max.
Phosphorus: 0.045 max.
Sulfur: 0.030 max.
Silicon: 1.00 max.
Chromium: 17.00-19.00
Nickel: 9.00-13.00
Titanium: 5(C+N) min/ 0.70 max
Element (Wt.%)
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Titanium |
| 0.08max | 2.00max | 0.045max | 0.030max | 1.00max | 17.00-19.00 | 9.00-13.00 | 5(C+N) min/ 0.70 max |
Mechanical Property
| Material Item | Tensile Strength (MPa) | Yield Strength (MPa) | Extension | Hardness (HV) | Density |
| 321 | ≥520 | ≥205 | ≥40% | ≤200 | 8.03g/cm³ |
Surface Treatment
| Surface Treatment | Definition | Application |
| NO.1 | A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding process | Chemical Tanks, Pipes, Chemical Industry Equipment etc. |
| 2B | After cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate luster | Medical Equipment, Food Industry, Construction Material, Kitchen Utensils etc. |
| BA | After cold rolling, bright heat treatment is given | Kitchen Utensils, Electric Equipment, Building Construction etc. |
| NO.4 | Products polished with abrasives 150 to 180 as specified in JIS R6001 | Kitchen Utensils, Building Construction, Medical Equipment etc. |
| HL | After polishing, use the appropriate abrasive size to form a continuous polishing streak | Building Construction etc. |
| 8K | A mirror-like reflective surface given by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior and exterior decoration etc. |
Channel Bar
| Commodity | 321 stainless steel channel bar |
| Size | 5#-40# |
| Length | 6m, or as customized |
| Surface | Bright, pickled, black |
| Application | Construction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields |
| Delivery Time | 7-30 days, according to quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | Export standard package, or as per customers’ requirement |
FAQ
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surfacetreatment requirements, cold or hot ,as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai,which is very near to my company , if you have other ports requirement, you could tell us in advance
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can I pay you a visit at your factory?
Customers from all around the world are welcome to visit our factory.
Q8:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
