Super Super Duplex Stainless Steel Pipe 2205 2507 Seamless Welded Pipe Price Per Ton
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Certification | mill certificate |
| Model Number | 316L seamless stainless steel pipe |
| Minimum Order Quantity | 25T |
| Price | negothiable |
| Packaging Details | Export Package |
| Delivery Time | 15-20 days after deposit |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000T PER MONTH OR MORE |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 316L Seamless Stainless Steel Pipe | Standard | EN, BS, JIS, Etc |
|---|---|---|---|
| Type | Seamless Stainless Steel Pipe | Size | 6mm - 1174mm Or Customized |
| Grade | Q235, Q235B, S275, S275jr, A53, St37, Etc | Oiled Or Non-oiled | Non-oiled |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, | Technique | ERW, SAW |
| OD | 10mm 20mm | Length | 1000-5800mm,6000-12000mm |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding | Surface Finish | 2B |
| Section Shape | Round | ||
| High Light | 2205 super duplex stainless steel pipe,2507 super duplex stainless steel pipe,5800mm duplex stainless steel pipe |
||
Product Description

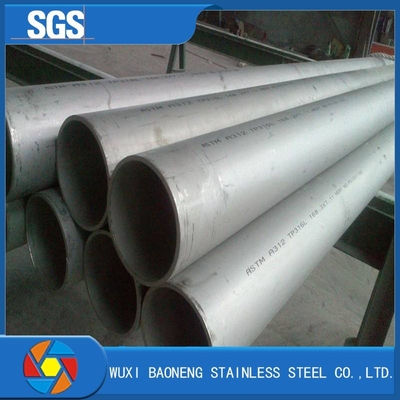

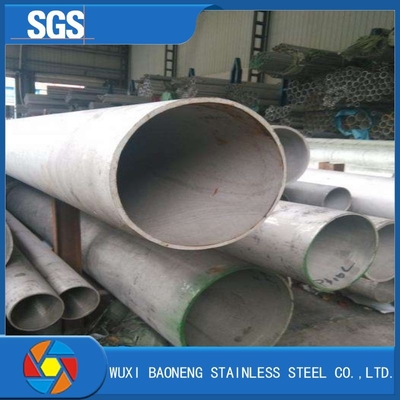

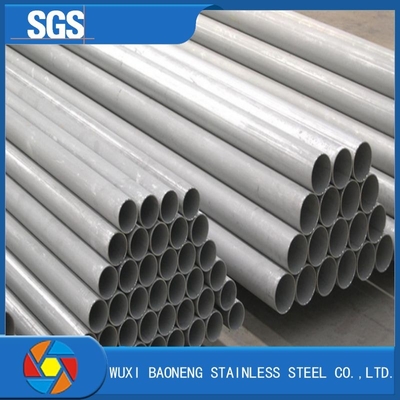

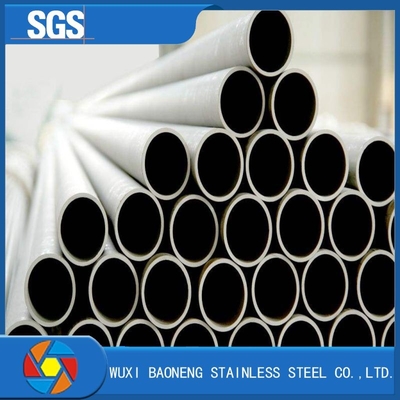

316L seamless stainless steel pipe
316L austenitic stainless steel is a low carbon version of 316 . The low carbon helps improve weldability as compared to the 316 as well as improved corrosion resistance. The added Molybdenum in 316L gives this grade much better pitting resistance than the traditional 304L stainless. This alloy is one of the most widely used stainless steels showing up in just about every industry and is often used in seawater applications due to the pitting resistance.
Application
Construction encasement, doors, windows and armatures, offshore modules, cisterns and pipes for chemical tankers, production, warehousing and overland transportation of chemicals, food and beverages, pharmacy, synthetic fibre, paper and textile plants and pressure vessels. Due to the low C-content, the resistance to intergranular corrosion is also guaranteed in the welded condition.
ElementType 316L (Wt.%)
Carbon: 0.03 max
Manganese: 2.00 max.
Phosphorus: 0.045 max.
Sulfur: 0.030 max.
Silicon: 1.00 max.
Chromium: 16.00-18.00
Nickel: 10.00-14.00
Molybdenum: 2.00-3.00
Element (Wt.%)
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Molybdenum |
| 0.03max | 2.00max | 0.045max | 0.030max | 1.00max | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
Mechanical Property
| Material Item | Tensile Strength (MPa) | Proof Stress 0.2% (MPa) | % Elongation | Hardness HB | Density |
| 316L | ≥480 | ≥177 | ≥40 | ≤200 | 7.98g/cm³ |
PIPE
Physical Property:
| Form | Tensile Strength (MPa) | Proof Stress 0.2% (MPa) | % Elongation | Hardness HB | Density |
| 316L | ≥485 | ≥170 | ≥45 | ≤217 | 7.98g/cm³ |
Surface Treatment
| Surface Treatment | Definition | Application |
| NO.1 | A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding process | Chemical Tanks, Pipes, Chemical Industry Equipment etc. |
| 2B | After cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate luster | Medical Equipment, Food Industry, Construction Material, Kitchen Utensils etc. |
| BA | After cold rolling, bright heat treatment is given | Kitchen Utensils, Electric Equipment, Building Construction etc. |
| NO.4 | Products polished with abrasives 150 to 180 as specified in JIS R6001 | Kitchen Utensils, Building Construction, Medical Equipment etc. |
| HL | After polishing, use the appropriate abrasive size to form a continuous polishing streak | Building Construction etc. |
| 8K | A mirror-like reflective surface given by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior and exterior decoration etc. |
| Commodity | 316L seamless stainless steel pipe |
| Grade | 316L |
| OD | 6mm-426mm, or as customized |
| WT | 1mm-30mm, or as customized |
| Length | 5m-7m, or as customized |
| Surface | Pickling, matt, polished, mirror |
| Application | Petroleum, chemical industry, fluid transportation, constructions, Pressure and heat transmission, heat exchanger and condenser etc. |
| Delivery Time | 7-30 days, according to quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | In bundles, water proof packing, in wooden case, or as per customers’ requirement |
FAQ
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surfacetreatment requirements, cold or hot ,as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai,which is very near to my company , if you have other ports requirement, you could tell us in advance
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can I pay you a visit at your factory?
Customers from all around the world are welcome to visit our factory.
Q8:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
