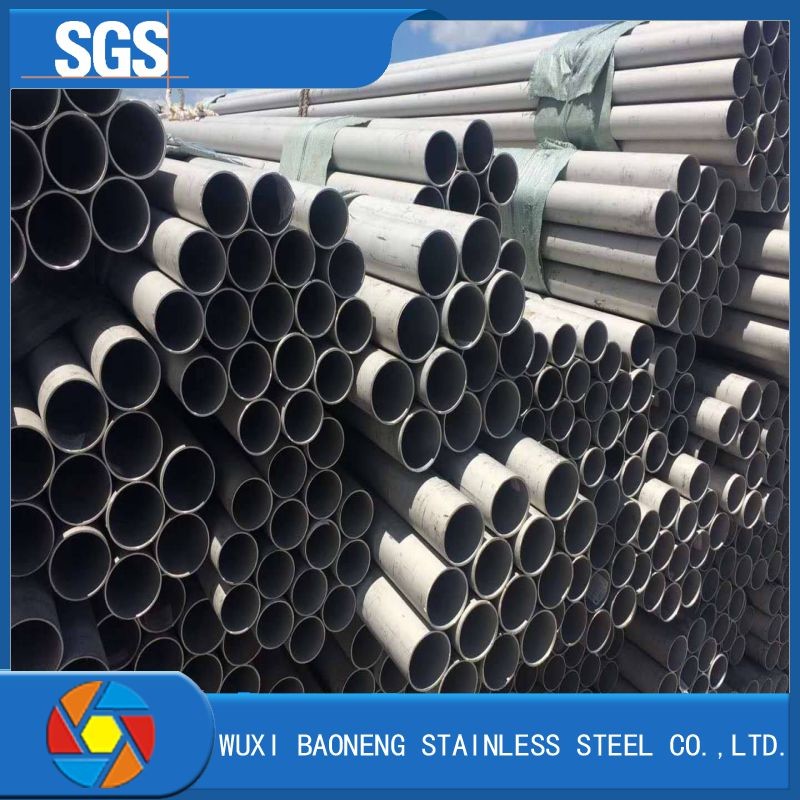

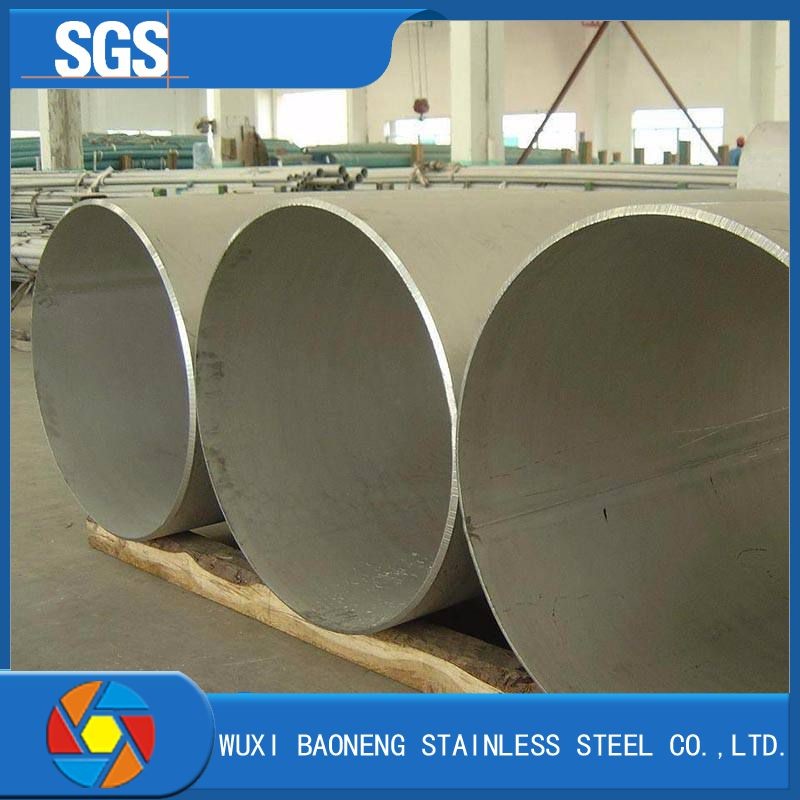

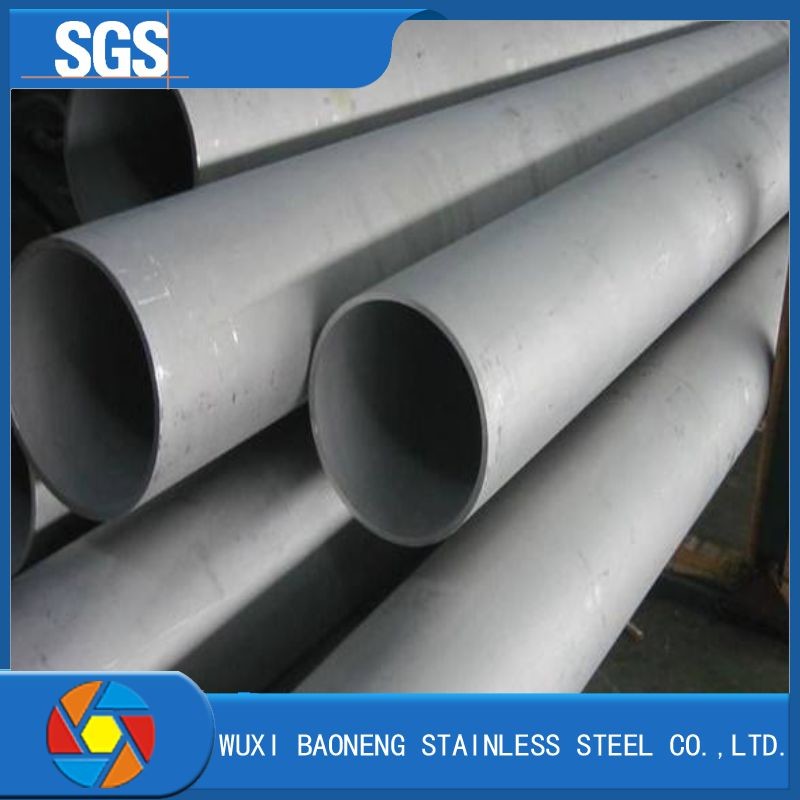

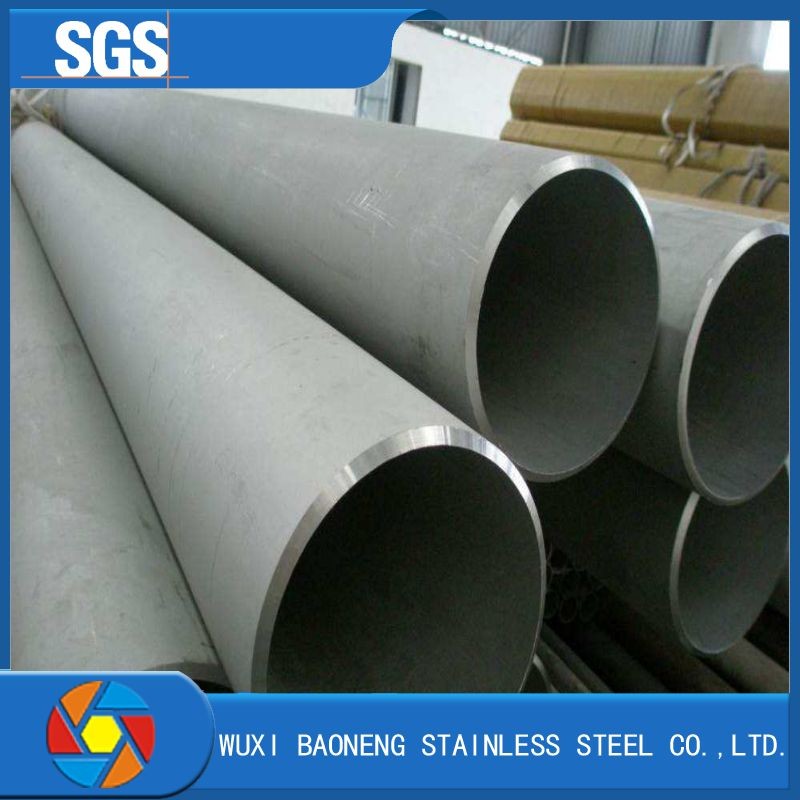

6000-12000mm High Quality ASTM 304 Round Stainless Steel Pipe
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Certification | mill certificate |
| Model Number | 309S welded stainless steel pipe |
| Minimum Order Quantity | 25T |
| Price | negothiable |
| Packaging Details | Export Package |
| Delivery Time | 15-20 days after deposit |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000T PER MONTH OR MORE |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | EN, BS, JIS, Etc | Grade | Q235, Q235B, S275, S275jr, A53, St37, Etc |
|---|---|---|---|
| Oiled Or Non-oiled | Non-oiled | Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, |
| Technique | ERW, SAW | OD | 10mm 20mm |
| Length | 1000-5800mm,6000-12000mm | Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| Surface Finish | 2B | Section Shape | Round |
| High Light | 6000mm round stainless steel pipe,12000mm round stainless steel pipe,ASTM ss 304 welded pipe |
||
Product Description
309S welded stainless steel pipe
309S stainless steel is a low carbon version of 309. Because of its lower carbon-content, 309S minimizes carbide precipitation, and improves weldability. It can be easily roll formed, stamped and drawn. Other key properties of 309S include good weldability and machinability, outstanding resistance to oxidation. 309S is utilized by many different industries for a number of critical applications including:oven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts and so on.
ElementType 309S (Wt.%)
Carbon: 0.08 max
Manganese: 2.00 max.
Phosphorus: 0.045 max.
Sulfur: 0.030 max.
Silicon: 1.00 max.
Chromium: 22.00-24.00
Nickel: 12.00-15.00
Element (Wt.%)
| Carbon | Manganese | phosphorus | Sulfur | Silicon | Chromium | Nickel |
| 0.08max | 2.00max | 0.045max | 0.030max | 1.00max | 22.00-24.00 | 12.00-15.00 |
Mechanical Property
| Material Item | Tensile Strength (MPa) | Yield Strength (MPa) | Extension | Hardness (HV) | Density |
| 309S | ≥520 | ≥205 | ≥40% | ≤200 | 7.98g/cm³ |
Hot rolled
| Commodity | 309S hot rolled stainless steel sheet |
| Brand | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Thickness | 3mm-30mm, or as customized |
| Width | 1500mm/1800mm/2000mm, or as customized |
| Length | 2000mm/2438mm/6000mm, or as customized |
| Application | oven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts, etc |
| Delivery Time |
Within 15 days for less than 100mt About 30 days for on and more than 100mt |
| Price Terms | FOB/ CFR/ CIF |
| Package | Standard Export Packaging |
Cold rolled
| Commodity | 309S cold rolled stainless steel sheet |
| Brand | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Thickness | 0.3mm-6mm |
| Width | 1000mm/1220mm/1500mm/2000mm, or as customized |
| Length | 2000mm/2438mm/6000mm, or as customized |
| Surface | 2B/ BA/ No.4/ 8K/ HL |
| Application | oven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts, etc |
| Delivery Time |
Within 15 days for less than 100mt About 30 days for on and more than 100mt |
| Price Terms | FOB/ CFR/ CIF |
| Package | Standard Export Packaging |
Surface Treatment
| Surface Treatment | Definition | Application |
| NO.1 | A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding process | Chemical Tanks, Pipes, Chemical Industry Equipment etc. |
| 2B | After cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate luster | Medical Equipment, Food Industry, Construction Material, Kitchen Utensils etc. |
| BA | After cold rolling, bright heat treatment is given | Kitchen Utensils, Electric Equipment, Building Construction etc. |
| NO.4 | Products polished with abrasives 150 to 180 as specified in JIS R6001 | Kitchen Utensils, Building Construction, Medical Equipment etc. |
| HL | After polishing, use the appropriate abrasive size to form a continuous polishing streak | Building Construction etc. |
| 8K | A mirror-like reflective surface given by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior and exterior decoration etc. |
PIPE
| Commodity | 309S seamless/welded stainless steel pipe |
| Grade | 309S |
| OD | 6mm-426mm, or as customized |
| WT | 1mm-30mm, or as customized |
| Length | 5m-7m, or as customized |
| Surface | Pickling, matt, polished, mirror |
| Application | Petroleum, heat exchanger, chemical industry, fluid transportation, constructions, etc. |
| Delivery Time | 7-30 days, according to quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | In bundles, water proof packing, in wooden case, or as per customers’ requirement |
COIL
| Commodity | 309S hot rolled/cold rolled stainless steel coil |
| Brand | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Surface | No.1/ 2B/ BA/ No.4/ 8K/ HL |
| Thickness | 0.3mm-16mm |
| Width | 1000mm-2000mm, or as customized |
| Length | as customized |
| Application | oven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts, etc |
| Delivery Time | Normally within 15 days, according to the quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | Standard Export Packaging |
Bar
| Commodity | 309S stainless steel round bar |
| Diameter | 1mm-800mm |
| Length | 6m, or as customized |
| Surface | Bright, pickled, black |
| Application | Construction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields |
| Delivery Time | 7-30 days, according to quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | Export standard package, or as per customers’ requirement |
STRIP
| Commodity | 309S stainless steel strip |
| Brand | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Surface | No.1/ 2B/ BA/ No.4/ 8K/ HL |
| Thickness | 0.02mm-5mm |
| Width | 15mm-600mm |
| Length | as customized |
| Application | oven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts, etc |
| Delivery Time | Normally within 15 days, according to the quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | Standard Export Packaging |
