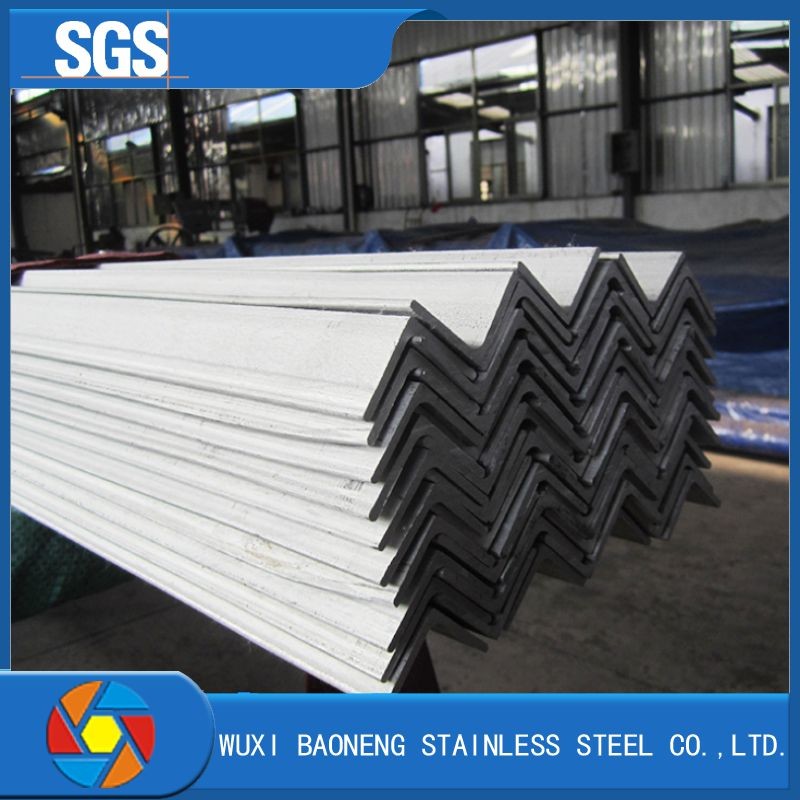

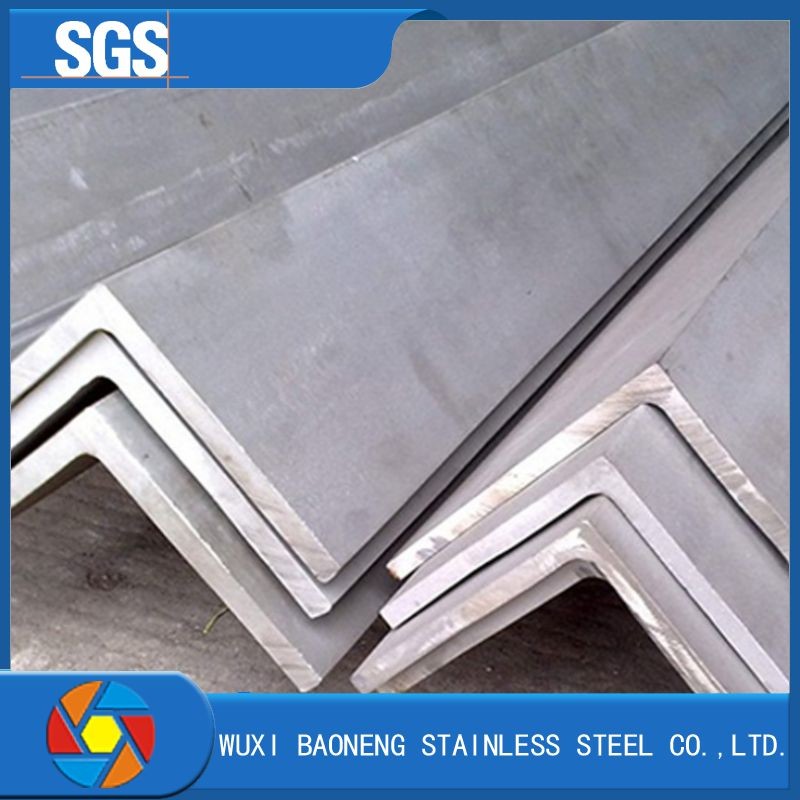

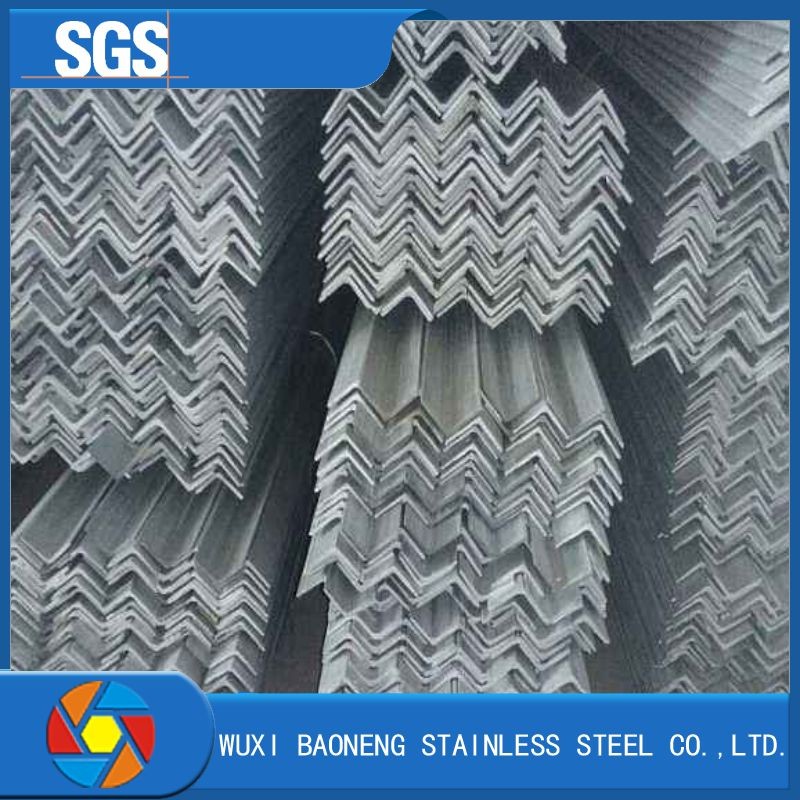

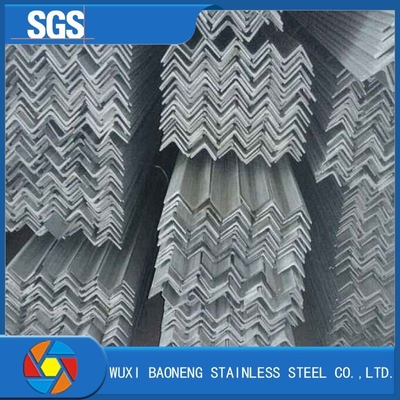

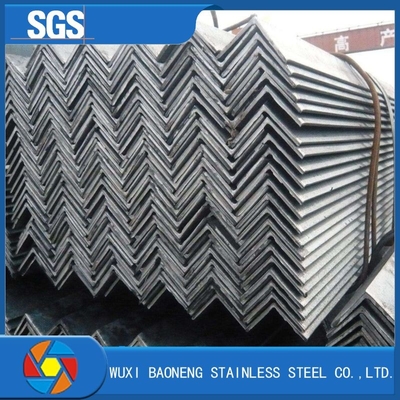

JIS AISI 316 Stainless Steel Angle 20mmx20mmx3mm For Construction
| Place of Origin | CHINA |
|---|---|
| Brand Name | TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc |
| Certification | mill certificate |
| Model Number | 904L stainless steel angle bar |
| Minimum Order Quantity | 25T |
| Price | negothiable |
| Packaging Details | Export Package |
| Delivery Time | 15-20 days after deposit |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000T PER MONTH OR MORE |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 904L Stainless Steel Angle Bar | Standard | JIS, AiSi, ASTM, GB, DIN, EN |
|---|---|---|---|
| Type | Angle Bar | Size | 20mmx20mmx3mm~150mmx150mmx12mm |
| Length | 6-12m | Width | 20-610mm |
| Technique | Hot Rolled | Surface Treatment | Polished |
| Grade | 300 Series | Processing Service | Bending, Welding, Cutting |
| Surface Finish | BA, BA | Application | Construction |
| Steel Grade | 316, 321, 304 | ||
| Highlight | AISI 316 stainless steel angle,JIS 316 stainless steel angle,20mm 316 stainless angle iron |
||
Product Description
904L stainless steel angle bar
904L is an austenitic stainless steel. In comparison to 316L, its molybdenum addition gives it superior resistance to localized attack (pitting and crevice corrosion) by chlorides and greater resistance reducing acids and in particular its copper addition gives it useful corrosion resistance to all concentrations of sulphuric acid. Its high alloying content also gives it greater resistance to chloride stress corrosion cracking, but it is still susceptible. Its low carbon content makes it resistant to sensitization by welding and which prevents intergranular corrosion.
It has applications in piping systems, pollution control equipment, heat exchangers, and bleaching systems.
Application
Chemical plant, oil refinery, petrochemical plants, bleaching tanks for the paper industry, combustion gas desulfurisation plants, application in sea water, sulphuric and phosphoric acid. Due to the low C-content, the resistance to intergranular corrosion is also guaranteed in the welded condition.
ElementType 904L (Wt.%)
Carbon: 0.02 max
Manganese: 2.00 max.
Phosphorus: 0.045 max.
Sulfur: 0.035 max.
Silicon: 1.00 max.
Chromium: 19.00-23.00
Nickel: 23.00-28.00
Copper: 1.00-2.00
Molybdenum: 4.00-5.00
Element (Wt.%)
| Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Copper | Molybdenum |
| 0.02max | 2.00max | 0.045max | 0.035max | 1.00max | 19.00-23.00 | 23.00-28.00 | 1.00-2.00 | 4.00-5.00 |
Surface Treatment
| Surface Treatment | Definition | Application |
| NO.1 | A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding process | Chemical Tanks, Pipes, Chemical Industry Equipment etc. |
| 2B | After cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate luster | Medical Equipment, Food Industry, Construction Material, Kitchen Utensils etc. |
| BA | After cold rolling, bright heat treatment is given | Kitchen Utensils, Electric Equipment, Building Construction etc. |
| NO.4 | Products polished with abrasives 150 to 180 as specified in JIS R6001 | Kitchen Utensils, Building Construction, Medical Equipment etc. |
| HL | After polishing, use the appropriate abrasive size to form a continuous polishing streak | Building Construction etc. |
| 8K | A mirror-like reflective surface given by polishing with finer abrasives over 800 mesh | Reflector, Mirror, Interior and exterior decoration etc. |
Angle Bar
| Commodity | 904L stainless steel angle bar |
| Size | 20mmx20mmx3mm~150mmx150mmx12mm |
| Length | 6m, or as customized |
| Surface | Bright, pickled, black |
| Application | Construction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields |
| Delivery Time | 7-30 days, according to quantity |
| Price Terms | FOB/ CFR/ CIF |
| Package | Export standard package, or as per customers’ requirement |
FAQ
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surfacetreatment requirements, cold or hot ,as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai,which is very near to my company , if you have other ports requirement, you could tell us in advance
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can I pay you a visit at your factory?
Customers from all around the world are welcome to visit our factory.
Q8:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
