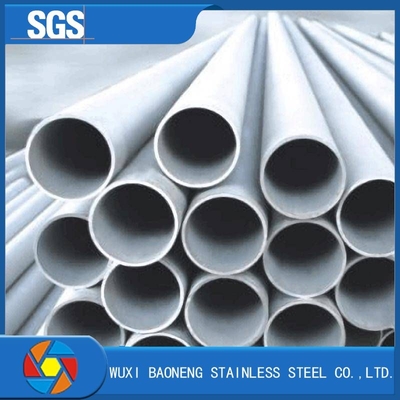

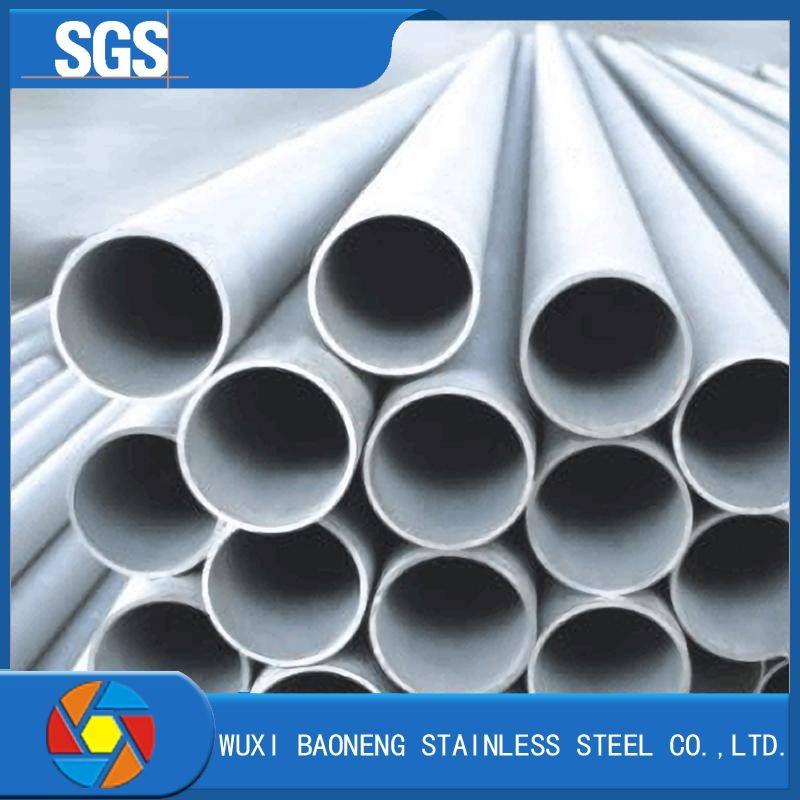

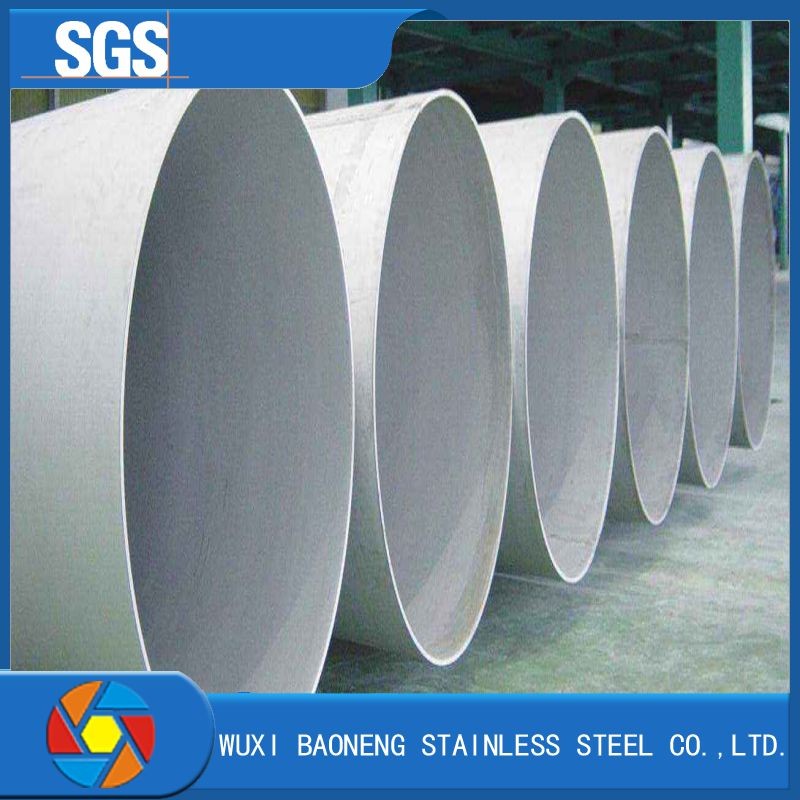

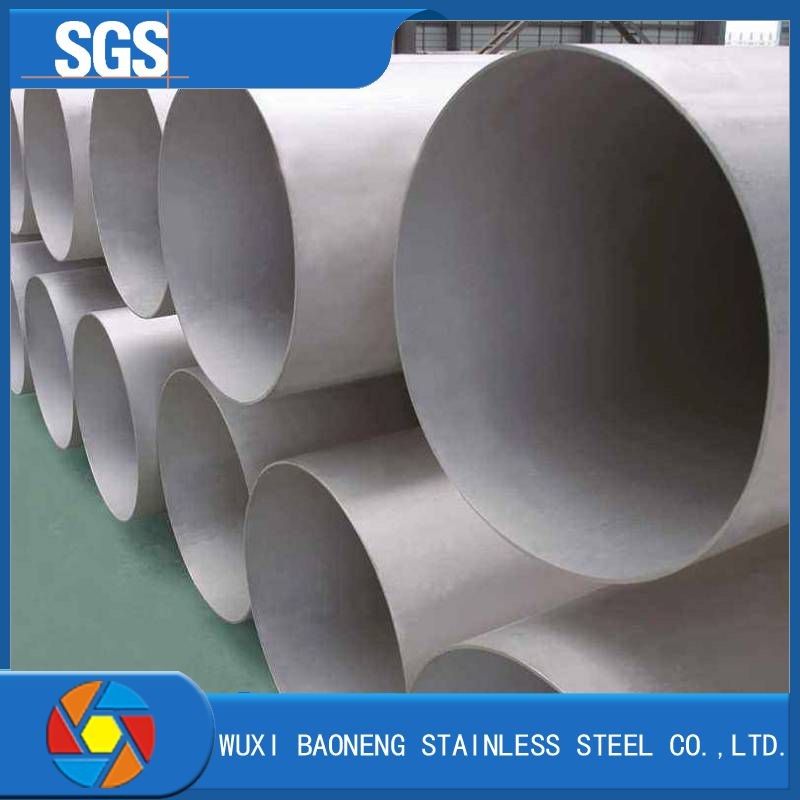

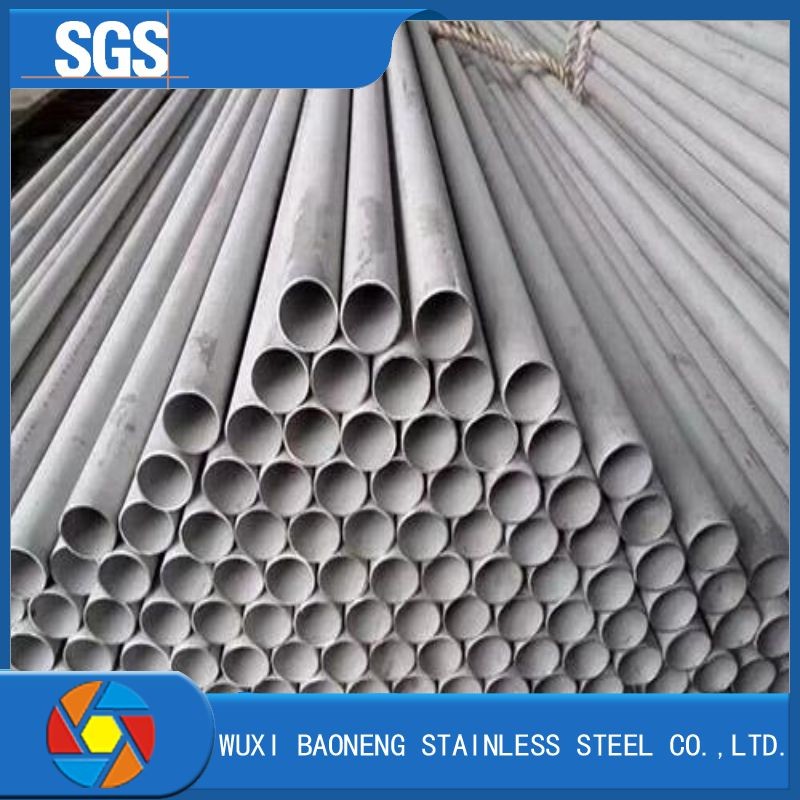

2205 2507 Stainless Steel Welded Pipe 20mm Super Duplex Stainless Steel Pipe

Place of Origin CHINA
Brand Name TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
Certification mill certificate
Model Number 316Lwelded stainless steel pipe
Minimum Order Quantity 25T
Price negothiable
Packaging Details Export Package
Delivery Time 15-20 days after deposit
Payment Terms L/C, T/T
Supply Ability 2000T PER MONTH OR MORE

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard EN, BS, JIS, Etc Grade Q235, Q235B, S275, S275jr, A53, St37, Etc
Oiled Or Non-oiled Non-oiled Application Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe,
Technique ERW, SAW OD 10mm 20mm
Length 1000-5800mm,6000-12000mm Processing Service Bending, Welding, Decoiling, Punching, Cutting, Moulding
Surface Finish 2B Section Shape Round
High Light

2205 Stainless Steel Welded Pipe

,

2507 Stainless Steel Welded Pipe

,

20mm super duplex stainless steel pipe

Leave a Message
Product Description

316L welded stainless steel pipe



316L austenitic stainless steel is a low carbon version of 316 . The low carbon helps improve weldability as compared to the 316 as well as improved corrosion resistance. The added Molybdenum in 316L gives this grade much better pitting resistance than the traditional 304L stainless. This alloy is one of the most widely used stainless steels showing up in just about every industry and is often used in seawater applications due to the pitting resistance.

Application

Construction encasement, doors, windows and armatures, offshore modules, cisterns and pipes for chemical tankers, production, warehousing and overland transportation of chemicals, food and beverages, pharmacy, synthetic fibre, paper and textile plants and pressure vessels. Due to the low C-content, the resistance to intergranular corrosion is also guaranteed in the welded condition.



ElementType 316L (Wt.%)

Carbon: 0.03 max

Manganese: 2.00 max.

Phosphorus: 0.045 max.

Sulfur: 0.030 max.

Silicon: 1.00 max.

Chromium: 16.00-18.00

Nickel: 10.00-14.00

Molybdenum: 2.00-3.00



Element (Wt.%)

Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel Molybdenum
0.03max 2.00max 0.045max 0.030max 1.00max 16.00-18.00 10.00-14.00 2.00-3.00



Mechanical Property

Material Item Tensile Strength (MPa) Proof Stress 0.2% (MPa) % Elongation Hardness HB Density
316L ≥480 ≥177 ≥40 ≤200 7.98g/cm³





PIPE

Physical Property:

Form Tensile Strength (MPa) Proof Stress 0.2% (MPa) % Elongation Hardness HB Density
316L ≥485 ≥170 ≥45 ≤217 7.98g/cm³





Hot rolled

Commodity 316L hot rolled stainless steel sheet
Brand TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
Thickness 3mm-30mm, or as customized
Width 1500mm/1800mm/2000mm, or as customized
Length 2000mm/2438mm/6000mm, or as customized
Application Construction encasement, doors, windows and armatures, offshore modules, cisterns and pipes for chemical tankers, production, warehousing and overland transportation of chemicals, food and beverages, pharmacy, synthetic fibre, paper and textile plants, pressure vessels, etc
Delivery Time

Within 15 days for less than 100mt

About 30 days for on and more than 100mt

Price Terms FOB/ CFR/ CIF
Package Standard Export Packaging





Cold rolled

Commodity 316L cold rolled stainless steel sheet
Brand TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
Thickness 0.3mm-6mm
Width 1000mm/1220mm/1500mm/2000mm, or as customized
Length 2000mm/2438mm/6000mm, or as customized
Surface 2B/ BA/ No.4/ 8K/ HL
Application Construction encasement, doors, windows and armatures, offshore modules, cisterns and pipes for chemical tankers, production, warehousing and overland transportation of chemicals, food and beverages, pharmacy, synthetic fibre, paper and textile plants, pressure vessels, etc
Delivery Time

Within 15 days for less than 100mt

About 30 days for on and more than 100mt

Price Terms FOB/ CFR/ CIF
Package Standard Export Packaging





Surface Treatment

Surface Treatment Definition Application
NO.1 A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding process Chemical Tanks, Pipes, Chemical Industry Equipment etc.
2B After cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate luster Medical Equipment, Food Industry, Construction Material, Kitchen Utensils etc.
BA After cold rolling, bright heat treatment is given Kitchen Utensils, Electric Equipment, Building Construction etc.
NO.4 Products polished with abrasives 150 to 180 as specified in JIS R6001 Kitchen Utensils, Building Construction, Medical Equipment etc.
HL After polishing, use the appropriate abrasive size to form a continuous polishing streak Building Construction etc.
8K A mirror-like reflective surface given by polishing with finer abrasives over 800 mesh Reflector, Mirror, Interior and exterior decoration etc.





PIPE

Commodity 316L seamless/welded stainless steel pipe
Grade 316L
OD 6mm-426mm, or as customized
WT 1mm-30mm, or as customized
Length 5m-7m, or as customized
Surface Pickling, matt, polished, mirror
Application Petroleum, chemical industry, fluid transportation, constructions, Pressure and heat transmission, heat exchanger and condenser etc.
Delivery Time 7-30 days, according to quantity
Price Terms FOB/ CFR/ CIF
Package In bundles, water proof packing, in wooden case, or as per customers’ requirement





COIL

Commodity 316L hot rolled/cold rolled stainless steel coil
Brand TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
Surface No.1/ 2B/ BA/ No.4/ 8K/ HL
Thickness 0.3mm-16mm
Width 1000mm-2000mm, or as customized
Length as customized
Application Construction encasement, doors, windows and armatures, offshore modules, cisterns and pipes for chemical tankers, production, warehousing and overland transportation of chemicals, food and beverages, pharmacy, synthetic fibre, paper and textile plants, pressure vessels, etc
Delivery Time Normally within 15 days, according to the quantity
Price Terms FOB/ CFR/ CIF
Package Standard Export Packaging







Bar

Commodity 316L stainless steel round bar
Diameter 1mm-800mm
Length 6m, or as customized
Surface Bright, pickled, black
Application Construction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields
Delivery Time 7-30 days, according to quantity
Price Terms FOB/ CFR/ CIF
Package Export standard package, or as per customers’ requirement





STRIP

Commodity 316L stainless steel strip
Brand TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
Surface No.1/ 2B/ BA/ No.4/ 8K/ HL
Thickness 0.02mm-5mm
Width 15mm-600mm
Length as customized
Application Construction encasement, doors, windows and armatures, offshore modules, cisterns and pipes for chemical tankers, production, warehousing and overland transportation of chemicals, food and beverages, pharmacy, synthetic fibre, paper and textile plants, pressure vessels, etc
Delivery Time Normally within 15 days, according to the quantity
Price Terms FOB/ CFR/ CIF
Package Standard Export Packaging





SQUARE PIPE

Commodity seamless/welded stainless steel square pipe
Grade 316L
Size 10mmx10mm~200mmx200mm
Thickness 1mm-10mm
Length 6m, or as customized
Surface Pickling, matt, polished, mirror
Application Petroleum, chemical industry, fluid transportation, constructions, Pressure and heat transmission, heat exchanger and condenser etc.
Delivery Time 7-30 days, according to quantity
Price Terms FOB/ CFR/ CIF
Package Standard export packaging



Commodity seamless/welded stainless steel rectangular pipe
Grade 316L
Size 20mmx10mm, 40mmx20mm, 50mmx20mm, 80mx60mm, 150mmx100mm, or as customized
Thickness 1mm-10mm
Length 6m, or as customized
Surface Pickling, matt, polished, mirror
Application Petroleum, chemical industry, fluid transportation, constructions, Pressure and heat transmission, heat exchanger and condenser etc.
Delivery Time 7-30 days, according to quantity
Price Terms FOB/ CFR/ CIF
Package Standard export packaging





Angle Bar

Commodity 316L stainless steel angle bar
Size 20mmx20mmx3mm~150mmx150mmx12mm
Length 6m, or as customized
Surface Bright, pickled, black
Application Construction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields
Delivery Time 7-30 days, according to quantity
Price Terms FOB/ CFR/ CIF
Package Export standard package, or as per customers’ requirement





Flat Bar

Commodity 316L stainless steel flat bar
Thickness 3mm-60mm
Width 10mm-200mm, or as customized
Length 6m, or as customized
Surface Bright, pickled, black, polished
Application Construction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields
Delivery Time 7-30 days, according to quantity
Price Terms FOB/ CFR/ CIF
Package Export standard package, or as per customers’ requirement





Channel Bar

Commodity 316L stainless steel channel bar
Size 5#-40#
Length 6m, or as customized
Surface Bright, pickled, black
Application Construction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields
Delivery Time 7-30 days, according to quantity
Price Terms FOB/ CFR/ CIF
Package Export standard package, or as per customers’ requirement





Square Bar

Commodity 316L/317L stainless steel square bar
Size 5mm*5mm-60mm*60mm
Length 6m, or as customized
Surface Bright, pickled, black
Application Construction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields
Delivery Time 7-30 days, according to quantity
Price Terms FOB/ CFR/ CIF
Package Export standard package, or as per customers’ requirement





Element (Wt.%)

  Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel Molybdenum
316L 0.03max 2.00max 0.045max 0.030max 1.00max 16.00-18.00 10.00-14.00 2.00-3.00
317L 0.03max 2.00max 0.045max 0.030max 1.00max 18.00-20.00 11.00-15.00 3.00-4.00





Mechanical Property

Material Item Tensile Strength (MPa) Proof Stress 0.2% (MPa) % Elongation Hardness HB Density
316L ≥480 ≥177 ≥40 ≤200 7.98g/cm³
317L ≥480 ≥176 ≥40 ≤200 7.98g/cm³







Thick Wall PIPE

Commodity 316L stainless steel thick wall pipe
Grade 316L
Technique Seamless, welded
OD 20mm-426mm, or as customized
WT 6mm-30mm, or as customized
Length 5m-7m, or as customized
Surface Pickling, matt, polished, mirror
Application Chemical industry, architecture, petro chemical industry, chemical fertilizer production, food industry, boiler heat exchangers, natural gas industry, pharmaceutics, warter transfer, environmental protection and construction and building area., etc
Delivery Time 7-30 days, according to quantity
Price Terms FOB/ CFR/ CIF
Package Standard export package, or as per customers’ requirement
